IP Address Settings - APP

Enter the IP editing interface

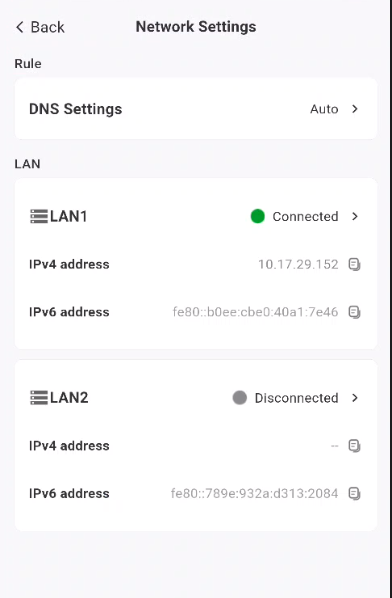

  1. Open Network Settings: Click [System Settings -> Network Settings]

  2. **Select **LAN: In the " **LAN **" field, click the LAN to be edited.

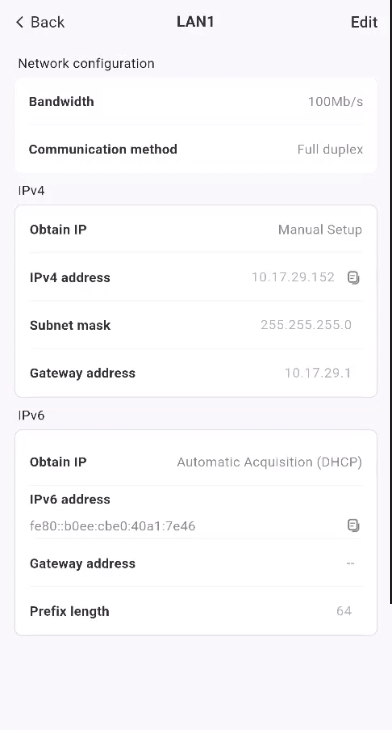

  3. **Edit **LAN: On the LAN details page, click the **Edit **button in the upper right corner


Configure IP Address

  1. IPv4 Configuration

  • Automatic (DHCP): The system automatically obtains an IP address

  • Manual Setup: If you need to use the IP address specified by your network service provider, please manually enter the relevant information, including the IP address, subnet mask, gateway and other details.

  1. IPv6 Configuration

  • Automatic (DHCP): The system automatically obtains an IP address

  • Manual Setup: After selecting this option, you need to manually enter information such as the IPv6 address, prefix length, and gateway.

  • Off: When selected, the system will disable IPv6 support for this network interface.


In the editing interface, set IPv4 and IPv6 respectively as needed. After editing, click Save, then enter **Confirm **in the pop-up prompt box that says modifying the network will directly log you out for re-login, and that's it.

Precautions

  • When two network cables are in the same network segment, try not to configure IP addresses of the same network segment for them.

  • DHCP Dependency: If you select automatic acquisition, please ensure that there is an available DHCP server (such as a router) in your network environment.

  • Address Refresh: There may be a slight delay in DHCP allocation. If an address is not obtained immediately, you can try to refresh it manually.

  • Execution time: Some network configuration commands may take a long time to execute. Please wait patiently.
