IP Address Settings - PC

Enter the IP editing interface

  1. Open Network Settings: Click [System Settings -> Network Settings]

  2. Select the network port: Next to the **General **tab, select the [Network Port] tab.

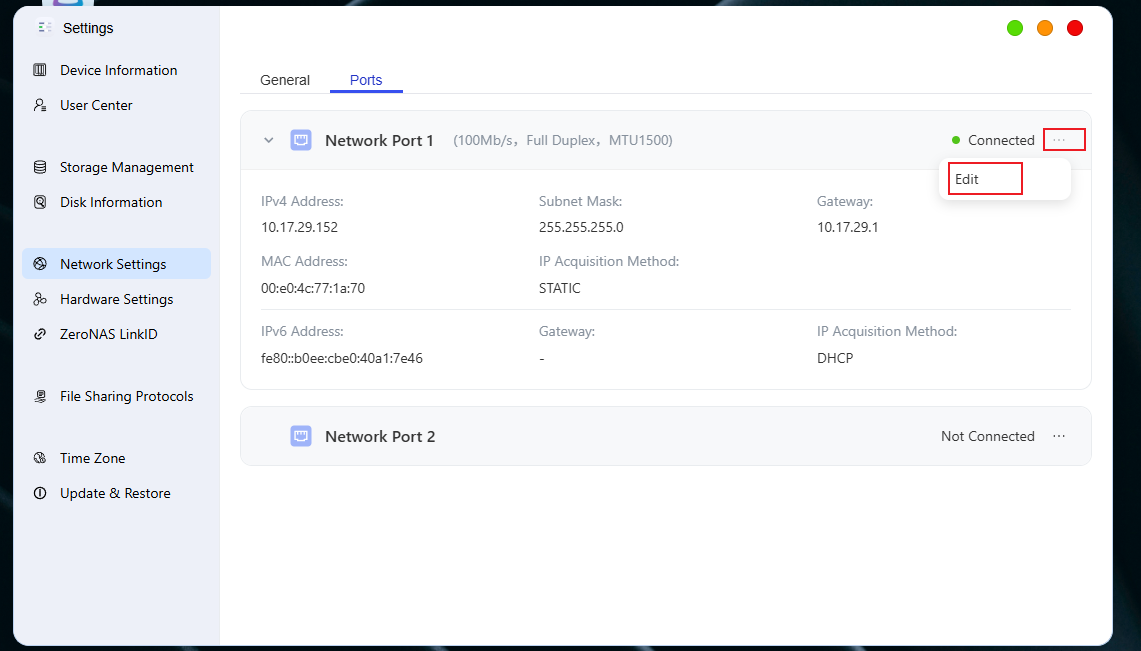

  3. Edit Network Port: Locate the network port to be configured, click the [". .."] icon on its right, and select [Edit]

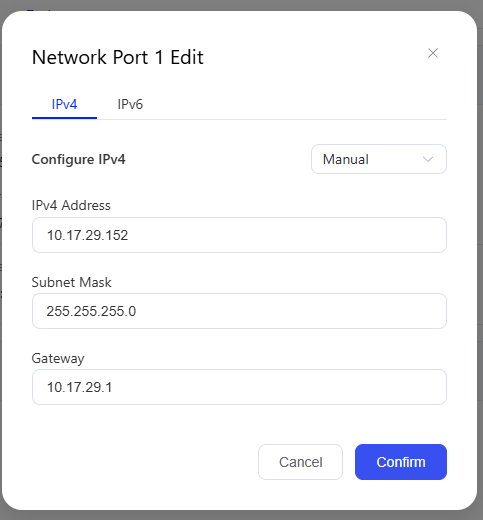

Configure IP Address

In the editing interface, set IPv4 and IPv6 respectively according to actual requirements


  1. IPv4 Configuration

  • Automatic (DHCP): The system automatically obtains an IP address

  • Manual Setup: If you need to use the IP address specified by your network service provider, please manually enter the relevant information, including the IP address, subnet mask, gateway and other details.

  1. IPv6 Configuration

  • Automatic (DHCP): The system automatically obtains an IP address

  • Manual Setup: After selecting this option, you need to manually enter information such as the IPv6 address, prefix length, and gateway.

  • Disable: When selected, the system will disable IPv6 support for this network interface.

Precautions

  • DHCP Dependency: If you select automatic acquisition, please ensure that there is an available DHCP server (such as a router) in your network environment.

  • Address Refresh: There may be a slight delay in DHCP allocation. If an address is not obtained immediately, you can try to refresh it manually.

  • Execution time: Some network configuration commands may take a long time to execute. Please wait patiently.
